Air-Cooled Ozone Generator Module 3G/H-20G/H Ozone Tube & Power Supply Kit OWLPUMP
$17.46
Professional air-cooled ozone generator module manufacturer supplying 3G/H to 20G/H ozone tubes and power supply assemblies. Suitable for water treatment, aquarium systems, ozone equipment, and OEM applications.

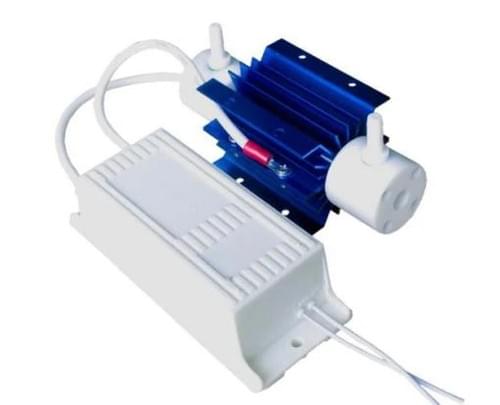

Air-Cooled Ozone Generator Module
3G/H – 20G/H Ozone Tube & Power Supply Assembly for Water Treatment and Industrial Applications
OWLPUMP provides professional air-cooled ozone generator modules designed for ozone equipment manufacturers, water treatment systems, aquarium applications, and industrial ozone solutions.
The system integrates a high-efficiency ozone tube and matching power supply, providing stable ozone output from 3G/H to 20G/H with reliable performance and easy installation.
With compact structure, efficient air cooling, and multiple voltage options, these ozone generator components are suitable for OEM projects requiring customized ozone solutions.
Key Features
✔ Stable Ozone Output
Available ozone production options:
- 3G/H
- 5G/H
- 7G/H
- 10G/H
- 20G/H
Suitable for different ozone treatment requirements.
✔ Air Cooling Design
The air-cooled structure provides effective heat dissipation, helping maintain stable ozone production and extending component service life.
✔ Complete Ozone Generator Assembly
Each module includes:
- Ozone Tube
- Matching Power Supply
Providing customers with a ready-to-install ozone generation solution.
✔ Multiple Voltage Options
Standard:
- AC220V / 50Hz
Optional:
- AC110V
- DC24V
- DC12V
Suitable for different international markets and equipment designs.
✔ OEM & ODM Available
OWLPUMP supports:
- Customized ozone output
- Private labeling
- Customized voltage
- OEM packaging
- Equipment integration support
Applications
OWLPUMP ozone generator modules are widely used in:
- Water Treatment Systems
- Aquarium Equipment
- Fish Farming
- Aquaculture Water Purification
- Swimming Pool Ozone Systems
- Industrial Water Treatment
- Food Processing Equipment
- Air Purification Equipment
- Medical Equipment
- Laboratory Equipment
- Ozone Generator Machines
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Air-Cooled Ozone Generator Module |
| Model | YYKS-3G |
| Ozone Output | 3G/H (Other Outputs Available) |
| Working Voltage | AC220V / 50Hz |
| Optional Voltage | AC110V / DC24V / DC12V |
| Operating Frequency | 21KHz |
| Output Voltage | 4KV |
| Power Consumption | 30–35W |
| Cooling Method | Air Cooling |
| Ozone Source | Dry Oxygen or Clean Air |
| Oxygen Source Concentration | 50–70 mg/L |
| Air Source Concentration | 5–8 mg/L |
| Oxygen Flow Rate | 0.5–1 L/min |
| Air Flow Rate | 10–15 L/min |
| Working Temperature | -10°C ~ 45°C |
| Humidity | <85% RH |
| Nozzle Size | 3 × 7 mm |
| Net Weight | 0.6 KG |
Installation Dimensions
Ozone Tube
- Size:
136 × 56 × 53 mm - Mounting Hole Distance:
47 × 34 mm - Hole Diameter:
Φ4.2 mm
Power Supply
- Size:
130 × 56 × 42 mm - Mounting Hole Distance:
120 mm - Hole Diameter:
Φ4.2 mm
Why Choose OWLPUMP?
Professional Ozone Equipment Manufacturer
OWLPUMP provides ozone generation components together with air pumps and aeration solutions for complete oxygen and water treatment applications.
Reliable Component Quality
Our ozone modules are manufactured with stable electrical performance and tested components to ensure long-term operation.
Flexible OEM Solutions
We support customized ozone output, voltage requirements, packaging, and product development for global partners.
One-Stop Pump & Ozone Solution
Besides ozone generator components, OWLPUMP also supplies:
- Air Pumps
- Linear Air Pumps
- Aquarium Pumps
- Marine Pumps
- Aquaculture Aeration Systems
Frequently Asked Questions (FAQ)
What ozone output options are available?
OWLPUMP ozone generator modules are available from 3G/H to 20G/H depending on customer requirements.
What gas source is required for ozone generation?
The ozone generator can work with dry clean air or oxygen sources. Oxygen supply provides higher ozone concentration.
Can this ozone module be customized?
Yes. OWLPUMP provides OEM and ODM services including voltage, output capacity, packaging, and design requirements.
Is this suitable for aquarium and aquaculture applications?
Yes. Ozone generation is widely used in aquarium filtration, aquaculture water purification, and improving water quality.
Do you manufacture ozone generators directly?
Yes. OWLPUMP specializes in manufacturing ozone-related products together with air pumps and water treatment equipment.
Looking for a Reliable Ozone Generator Manufacturer?
OWLPUMP is a professional manufacturer specializing in ozone generators, ozone generator modules, air pumps, aquarium pumps, marine pumps, and aquaculture aeration systems.
We support global distributors, equipment manufacturers, engineering companies, and OEM brands with reliable products, competitive pricing, and customized manufacturing solutions.
Contact OWLPUMP today to discuss your ozone project and request a quotation.
